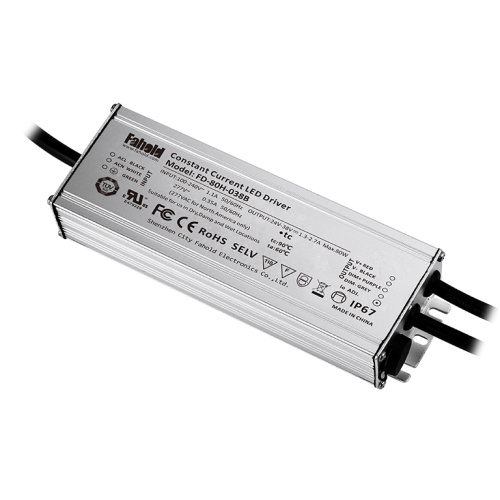

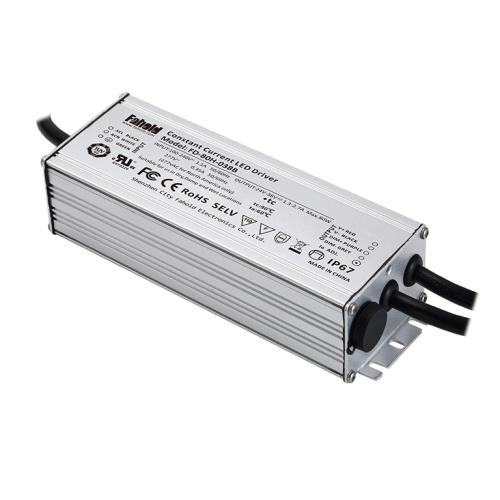

2.1A 80W LED Driver for Street Light Poles

Details

FD-80H-038B, rugged Aluminum enclosure led driver, designed for led street light bulb, led Floodlights applications, to operate general Outdoor Lighting Solutions. Constant Current Flicker free 0-10V/PWM/RX dimming, with wattage range of 100W ,UL,FCC,CE compliant, wide voltage output of IP67 Landscape Lighting led driver design. The units are suitable for Outdoor Pendant Lights, led Street lights & Canopy and floodlights etc. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, IP67 Waterproof, across the whole surface of the unit.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet UL8750, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.

Features & Benefits

1.Single channel output, output current level selectable by DIP S.W.

2.Support 1-10V along dimming signal, Passive or active signal.

3.Wide range of input voltage 100VAC ~ 277VAC

4.ouput voltage can select as different range: 24-38V,30-42v,36-54/45-76/72-143v

5.High efficiency up to 90%

6.Built-in active PFC function

7.100% output when no dimming signal input, can be used as normal power supply

8.Dimming effect smooth, Flicker free

9.Protections: Short circuit, over voltage.

10.Suitable for outdoor LED lighting application

Product Specs:

Output voltage:24-38V

Max. Output wattage: 80W

Max. Output Current: 2100mA

Dimensions:152x66x38mm

Efficiency:90%

Electronic Led Dimmer

Encironment/IP Rating: outdoor/IP67

Flicker free

Max. Input voltage: 277V

Certificate:UL,FCC,CE

FD-80H-038B, designed for led street lamp driver, constant current dimmable driver, Flicker free 0/1-10V/PWM/RX dimming, Street lighting solutions, desigen for high lumen Flood lights and High quality led street lights. Energy saving driver. Its housing was made out of Aluminum, independent design for the output connection structure, suitable for Europe market & North American market.
