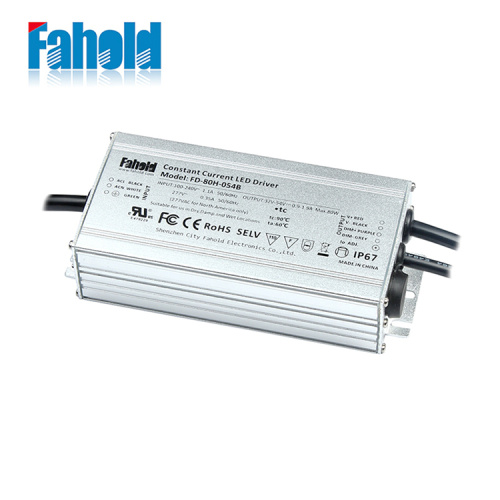

0-10V Dimmable Waterproof LED Lighting Driver 80W

Features & Benefits

· High PFC

-Aluminum case led driver

· Single channel output, output current level selectable.

· Wide range of input voltage 100VAC ~ 277VAC

· High efficiency up to 90%

· Built-in active PFC function

· 100% output dimming signal input, can be used as normal power supply

· Protections: Short circuit,over load, over voltage & over temperature protections

· Suitable for indoor LED lighting application

Product Specs:

Output voltage:24V

Max. Output wattage: 80W

Max. Output Current: 2600mA

Dimensions:152x66x38mm

Efficiency:90%

Electronic Led Dimmer

Encironment/IP Rating: outdoor/IP67

Flicker free

Max. Input voltage:277V

Certificate:UL,FCC,CE

Details

Standard features of the LED lighting driver includes short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547 and so on.

FD-80H-024 led driver, is made for LED Street lighting applications to operate general outdoor Lighting Solution. Constant voltage Flicker free 0-10V/PWM/RX dimming, with wattage range of 80W , wide voltage output of IP67 waterproof design with UL,FCC,CE certifications. The units is fit for LED Street lights & Canopy lights. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.

FD-80H-0024, UL Listed IP67 LED Driver constant current dimmable driver, Flicker free 0/1-10V/PWM/RX dimming, Street lighting solutions, Desigen for high lumen Linear lights AND High quality led street lights. Energy saving driver. Its housing was made out of Aluminum, independent design for the output connection structure, suitable for Europe market & North American market.
