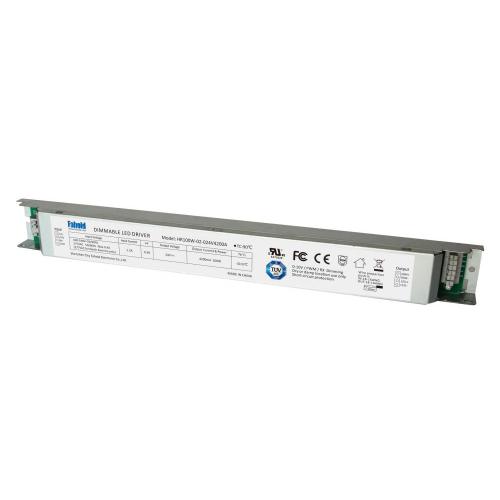

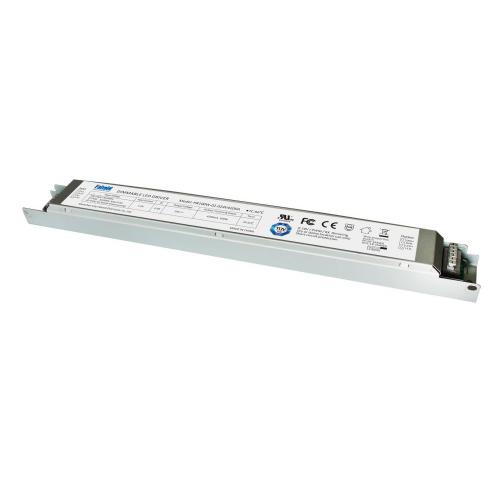

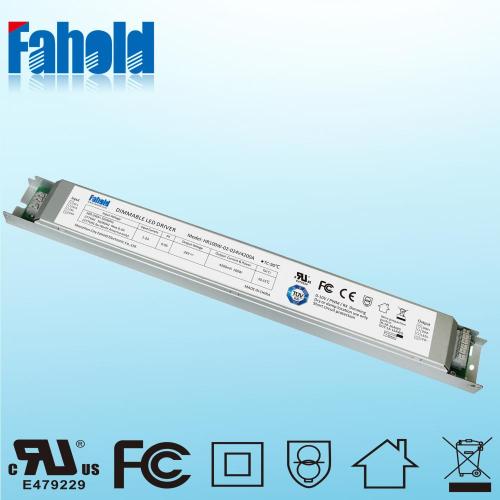

24V 100W Constant voltage Linear LED Driver

Details

HR100W-02-24, designed specifically for Constant voltage high quality led strips, led linear lights applications, to operate general Linear Lighting Solution. Constant voltage 24V Flicker free 0-10V/PWM/RX dimming LED Driver Slim 100W 4200mA, with wattage range of 100W ,UL,FCC,CE compliant, wide voltage output of non waterproof design. The units are suitable for led strips & Linear lighting. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.

Features & Benefits

· High PFC

-24V dimmable led driver

· Long slim shape

· Single channel output, output current level selectable.

· Wide range of input voltage 100VAC ~ 277VAC

· High efficiency up to 90%

· Built-in active PFC function

· 100% output dimming signal input, can be used as normal power supply

· Protections: Short circuit,over load, over voltage & over temperature protections

· Suitable for indoor LED lighting application

• OEM & ODM are welcome.
• Sample fee: negotiable, sample can be supplied in 5 days.
• High quality, complete kinds, good stability, strong practicability.
• Good after-sales service & point to point technical supports.
• Energy saving, long using life.
• Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, Leviton, JUNG, Berker, Be Lichtregler, etc.
• Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.

Product Specs:

Output voltage:12V

Max. Output wattage: 100W

Max. Output Current: 4200mA

Dimensions:372x39x28mm

Efficiency:91%

Electronic Led Dimmer

Encironment/IP Rating: indoor/IP20

Flicker free

Max. Input voltage:277V

Certificate:UL,FCC,CE

H100W-02-24, 24V Dimmable Led Driver constant voltage dimmable driver, Flicker free 0/1-10V/PWM/RX dimming, linear lighting solutions, Desigen for high lumen Linear lights AND High quality led strips. Energy saving driver. Its housing was made out of long shape iron, independent design for the output connection structure, suitable for Europe market & North American market.
