ShenZhen Fahold Electronic Limited

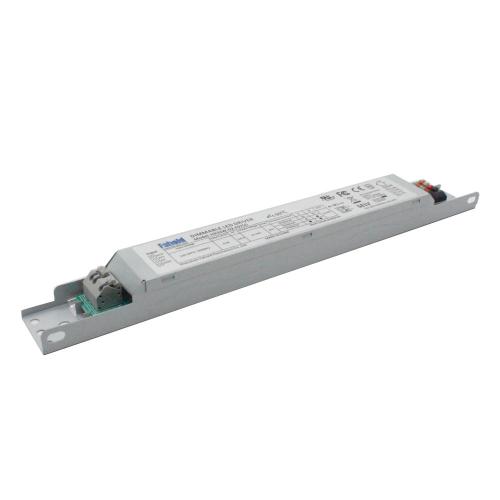

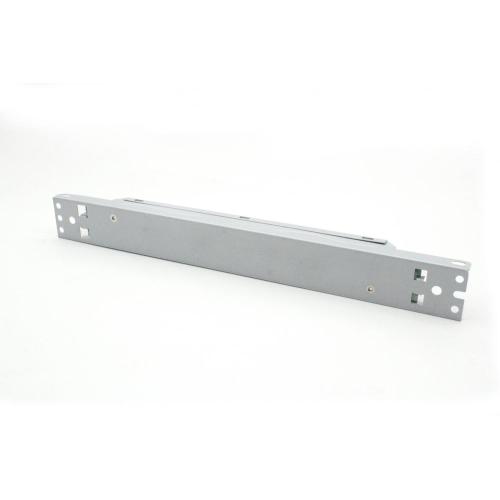

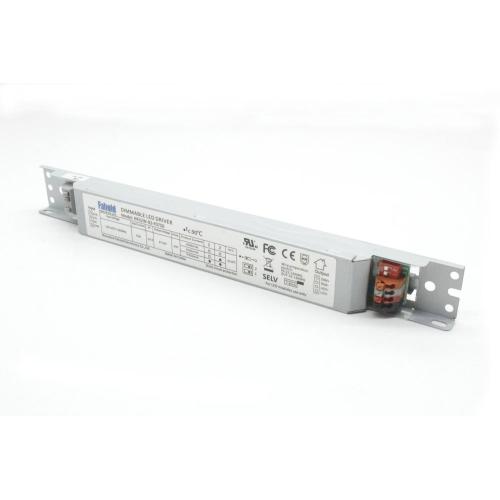

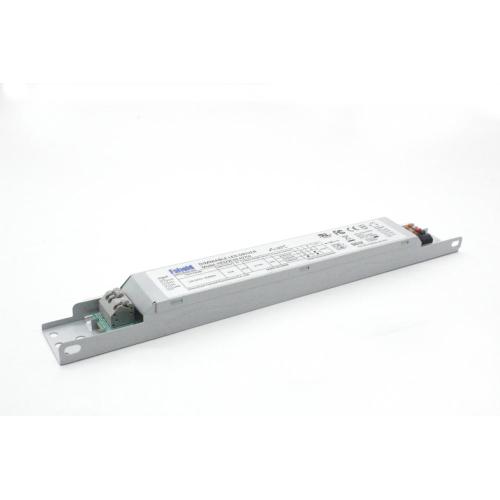

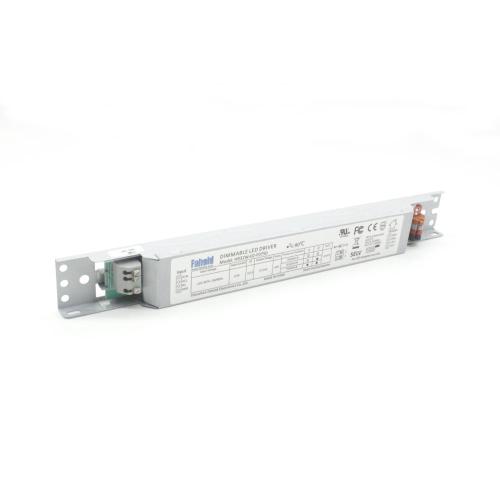

모형: HR32W-02
상표: 담보
포장: 50PCS / 카톤
생산력: 200 thousands pcs per month
수송: Ocean,Land,Air,DHL
원산지: 중국 광동
지원에 대한 지원: 200000pcs
인증 : ISO9001/2015
HS 코드: 8504401400
포트: Yantian,Shekou,HongKong
지불 유형: T/T,Paypal,Western Union
인 코텀: FOB,EXW,FCA
제품군 혜택
|
Input characteristics: |
|
|
Input Voltage |
120-277Vac or 120-347 |
|
Input Frequency |
47-63Hz |
|
Input Current (Typ.) |
600mAmax. @ 120-347Vac , 100% load |
|
Surge Current |
60Amax. @ 230Vac, 25℃ |
|
Power factor（Typ.） |
PF>0.9@115VAC/230VAC/277VAC/347VAC, 100% load |
|
THD总 |
THD<20% @115VAC/230VAC/277VAC/347VAC, 100% load |
|
Output characteristics |
|
|
Voltage accuracy |
5% |
|
No load Voltage |
2Wmax |
|
Efficiency |
85.5%@ 120-277Vac & 100% load, see efficiency vs. load curve for the details |
|
Ripple and Noise |
500mVp-p |
|
Line Regulation |
5%Io |
|
Load Regulation |
5%Io |
|
Turn On Delay Time |
Under normal conditions, the maximum delay time is 1 second |
|
Safety compliance |
|
|
Safety Standard |
GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12. |
|
Dielectric Strength |
P-S:3750VAC/5mA/60S P-E:1500VAC/5mA/60S P-E:500VAC/5mA/60S |
|
Insulation Resistance |
I/P-O/P:>50M Ohms / 500VDC / 25℃ / 70% RH. |
|
Leakage Current |
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage |
|
EMI |
GB17743，GB17625.1; EN55015, EN61000-3-2, EN61000-3-3. |
|
EMS |
EN 61000-4-2, 3,4,5,6,8,11, EN 61547. |
|
Surge Immunity |
Severity Level: Level2/2，DM 1.0kv Severity Level: Level3/3， CM 2.0kv Performance Criterion：B |
|
Reliability |
|
|
Life Time |
≥5Years H@230Vac, 100% load. See lifetime vs. Tc curve for the details |
|
MTBF |
≥ 200,000H@ 25℃, 230Vac, 80% load. (MIL-HDBK-217F) |
|
Warranty |
5 years |
|
Others |
|
|
Dimensions |
278*30*20mm（L*W*H）
|
|
Weight |
190±5g |
적용 분야
제품 디렉토리 : 새로운 도착 선형 LED 드라이버 (슬림 드라이버)
