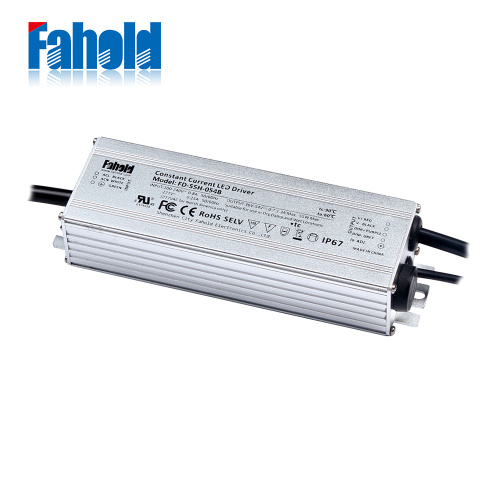

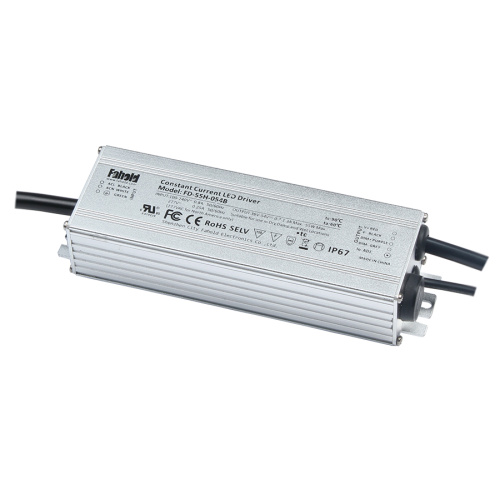

상업 led 벽 조명 Led 드라이버

Model No.

Power(W)

Output Voltage (Vdc)

Max output voltage (Vdc)

Output current (mA)

AC230V Efficiency (Typ.)

 AC100V Efficiency(Typ.)

FD-55H-38x

55

24-38

50

500-1800

88%

86%

FD-55H-54x

55

36-54

56

500-1300

88%

87%

FD-55H-76x

55

45-76

78

400-1000

88%

87%

FD-55H-115x

55

65-115

117

300-750

90%

88%

Input characteristics

Input Voltage

100-277Vac

Input Frequency

50-60Hz

Input Current (Typ.)

500mAmax. @ 100-277Vac , 100% load

Inrush Current

50Amax. @ 100-277Vac , 100% load

Power factor(Typ.)

PF>0.9@ 100-277Vac , 100% load

THD

THD<20%@ 100-277Vac , 100% load

Output characteristics

Current accuracy

5%I0

No load Voltage

2Wmax

Efficiency

86%@ 100-277Vac & 100% load, see efficiency vs. load curve for the details

Ripple and Noise

3000mVp-p

Line Regulation

3%Io

Load Regulation

3%Io

Turn On Delay Time

Under normal conditions, the maximum delay time is 1 second

Protection functions

Open circuit

When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed.

Short Circuit

The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed.

Environmental conditions

Operating Temperature

-40℃ to +60℃

Operating  Relative Humidity

10% to 90% RH, non-condensing

Storage Temperature

-40℃ to +85℃

Storage Relative Humidity

10% to 90%RH, non-condensing(Sea level to 2,000 m)

Vibration

10 to 500HZ Sweep at constant acceleration of 1.0G (depth: 3.5mm )for 1 Hour for each of the perpendicular axes X, Y, Z.

Gluey housing Degrees of Protection

IP65

Aluminium housing Degrees of Protection

IP67

Safety compliance

Safety Standard

GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12.

Dielectric Strength

P-S:3750VAC/5mA/60S     P-E:1500VAC/5mA/60S

P-E:500VAC/5mA/60S

Insulation Resistance

I/P-O/P:>50M Ohms / 500VDC / 25℃ / 70% RH.

Leakage Current

The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage

EMI

GB17743,GB17625.1; EN55015, EN61000-3-2, EN61000-3-3.

EMS

EN 61000-4-2, 3,4,5,6,8,11, EN 61547.

EFT

Severity Level :  Level2/2 line to line  1.0kv

Surge Immunity

Severity Level : Level2/2,  4.0kv

Severity Level : Level3/3,  6.0kv

Performance Criterion:B

Reliability

Life Time

≥5Years H@230Vac, 100% load. See lifetime vs. Tc curve for the details

MTBF

≥ 200,000H@ 25℃, 230Vac,  80% load. (MIL-HDBK-217F)

Warranty

5 years

Others

Gluey housing Dimensions

162X32X43(LxWxH)

Aluminium housing Dimensional

163.8X33X48(LxWxH)

Aluminium housing Weight

463±5g

Remark

1. The parameters above including the power factor, THD, efficiency are all tested under the ambient temperature 25℃ and humidity 50%, AC input 230V and 90% output load.

2. Io is rate output current.
