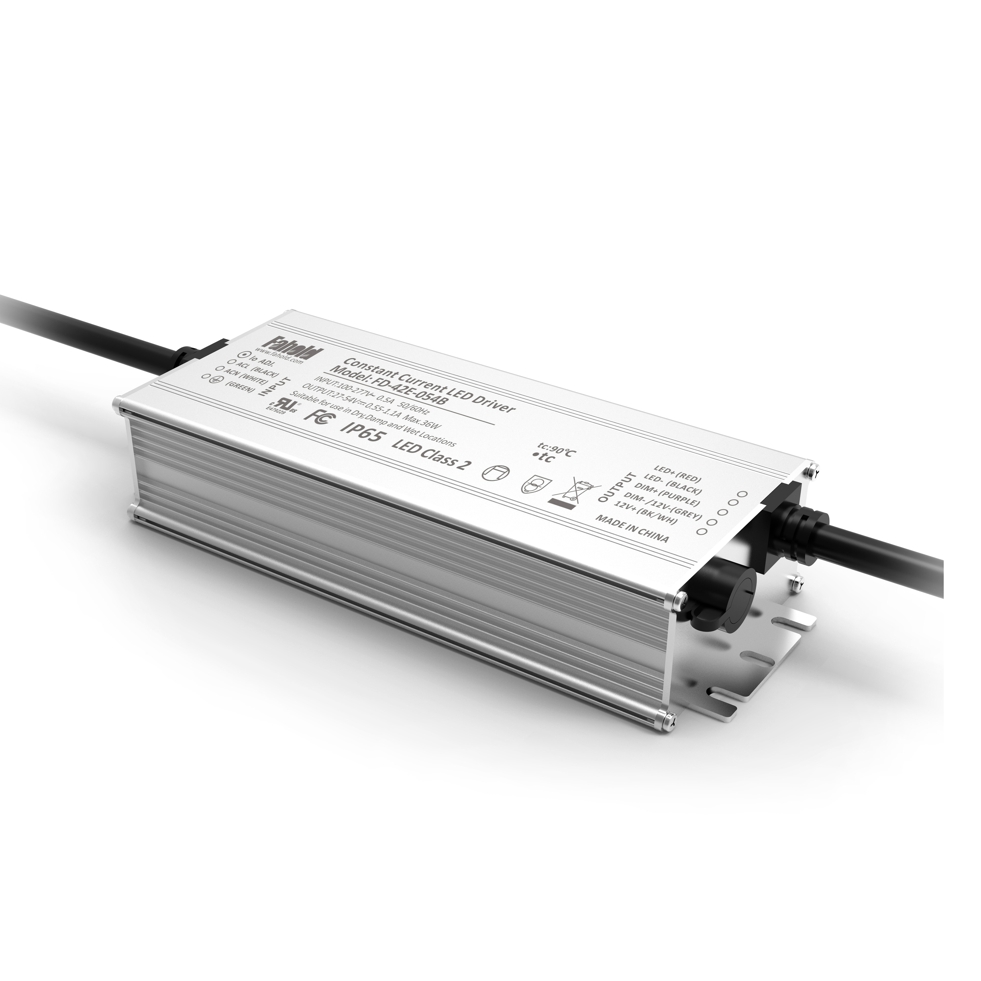

벽 조명용 36W IP65 LED 드라이버

Input characteristics

Input Voltage

100-277Vac

Input Frequency

50/60Hz

Input Current (Typ.)

0.45A @100-277 Vac , 100% load

No load Voltage

2Wmax

Inrush Current

60Amax. @ 347Vac, 25℃

Power factor（Typ.）

PF>0.95 @ 120Vac, PF>0.90 @ 277Vac,100% load,

THD

THD<20% @ 100-277 Vac, 100% load

Output characteristics

Current accuracy

± 5% I0

No load Voltage

Vout 63V max

Efficiency

≥88% @100 Vac, ≥92% @ 277 Vac

Output Voltage

27-54V  ;

Output current

0.55-1.1A

Line Regulation

3%Io

Load Regulation

3%Io

Turn On Delay Time

Under normal conditions, the maximum delay time is 3second

Potentiometer current output range

The minimum value:550mA; maximum value:1100mA; Remark: the total output power does not exceed 36W (actual output voltage * actual output current = power), otherwise, it can not be guaranteed.

Please use the matching programmer to set the output current

Protection functions

Open circuit

When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed.

Short Circuit

The input power shall decrease when the output rail short, the power supply shall be

self-recovery when the fault condition is removed.

Environmental conditions

Operating Temperature

-40℃ to +60℃

Operating Relative

10% to 90% RH, non-condensing

Storage Temperature

-40℃ to +85℃

Storage Relative Humidity

10% to 90%RH, non-condensing（Sea level to 2,000 m）

Vibration

10 to 500HZ Sweep at constant acceleration of 1.0G (depth: 3.5mm )for 1 Hour for each of the perpendicular axes X, Y, Z.
