ShenZhen Fahold Electronic Limited

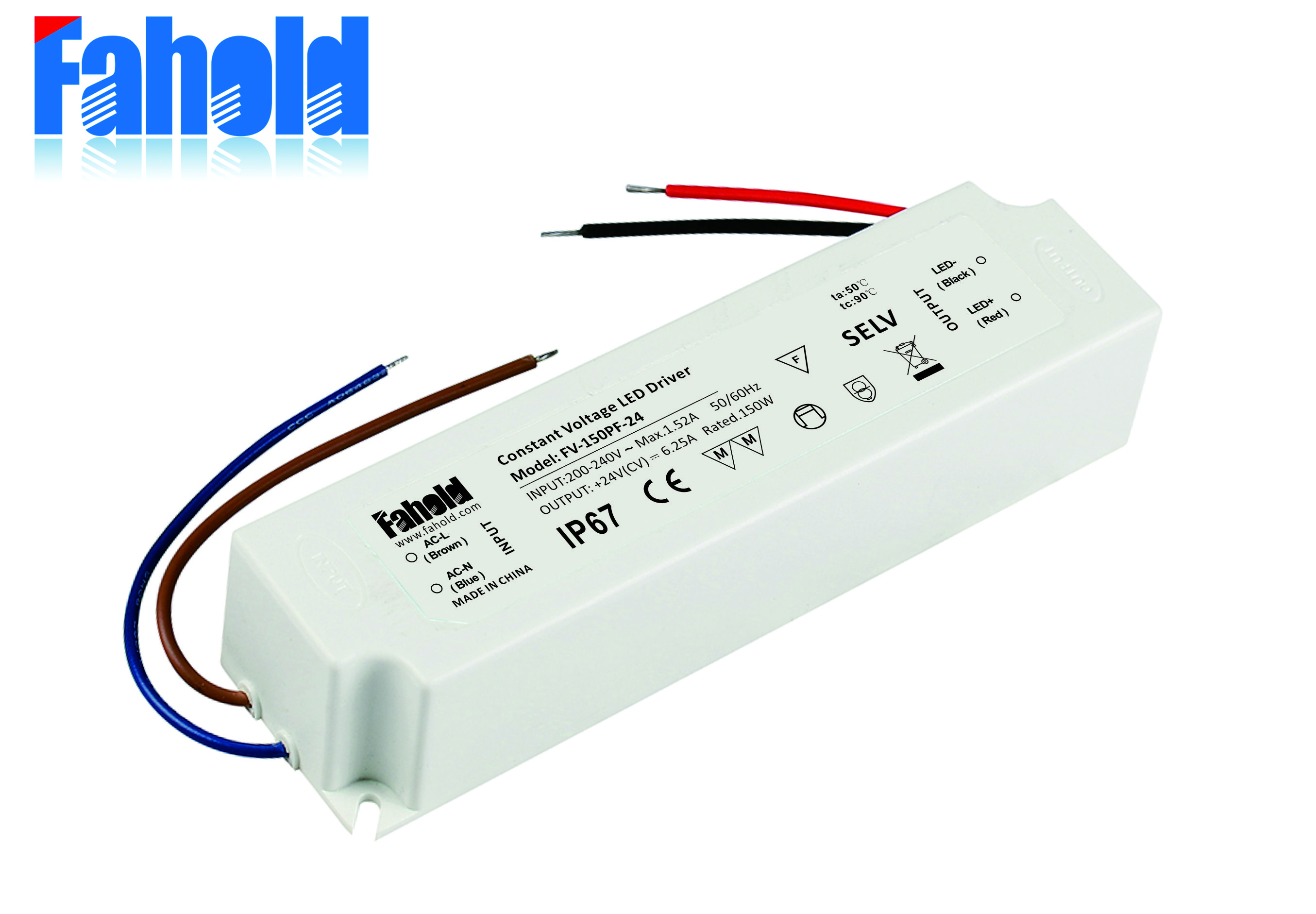

모형: FV-150PF-12 FV-150PF-24
상표: 파펠언
보증 기간 (년): 3 년
조명 솔루션 서비스: 조명 및 회로 설계, 프로젝트 설치
원산지: 중국
출력 유형: 단일
인증: CE SAA TUV
IP Rate: IP 67
Type: Consant Voltage
Efficiency: 94.5%
신청: LED Lighting driver
포장: 내부 상자 + 외부 카톤 80pcs / carton.
생산력: 200 thousands pcs per month
수송: Ocean,Air
원산지: 광동, 중국
지원에 대한 지원: 200 thousands pcs per month
인증 : UL, FCC, CE
HS 코드: 8504401400
포트: Yantian,Shekou,Hongkong
지불 유형: L/C,T/T,Paypal
인 코텀: FOB,EXW
|
Model No. |
|
PF-150-12 |
PF-150-24 |
|
|
|
|
Output |
DC voltage |
|
12V |
24V |
|
|
|
Rated current |
|
12.5A |
6.25A |
|
|
|
|
Load current range |
|
0~12.5A |
0~6.25A |
|
|
|
|
Rated power |
|
150W |
150W |
|
|
|
|
Ripple&noise |
|
120mV Vp-p |
150mV Vp-p |
|
|
|
|
Adjustable voltage |
|
- |
- |
|
|
|
|
Regulation accuracy |
|
±1% |
±1% |
|
|
|
|
Load regulation accuracy |
|
±0.5% |
±0.5% |
|
|
|
|
Source regulation accuracy |
|
±0.5% |
±0.5% |
|
|
|
|
Start,rise time |
1500ms,30ms@230VAC at full load |
|||||
|
Hold up time |
20ms@230VAC at full load |
|||||
|
Input |
AC input range |
180~260VAC/255~368VDC |
||||
|
Frequency range |
47~63Hz |
|||||
|
Efficiency |
|
93.5% |
94.5% |
|
|
|
|
Input current |
1.6A@230VAC |
|||||
|
Inrush current |
60A/230VAC cold start |
|||||
|
Leakage current |
<0.75mA/240VAC |
|||||
|
Protection |
Over load |
Rated load 110%~150% |
||||
|
Hiccup mode, Auto-recovery |
||||||
|
Over output voltage |
|
13.8~16.2V |
26.5~33.6V |
|
|
|
|
Shut off the output voltage, auto-recovery |
||||||
|
Over temperature |
Shut off the output voltage, auto-recovery |
|||||
|
Ambient |
Operation temperature |
-30℃~+70℃(Reference to derating curve) |
||||
|
Operation humidity |
20%~90% RH No condensation |
|||||
|
Storage temperature & humidity |
-40℃~+85℃ 10~95% RH |
|||||
|
Temperature coefficient |
±0.03%/℃(0~50℃) |
|||||
|
Vibration resistance |
10~500Hz,5G 10minutes/cycle,each X,Y,Z 60minutes |
|||||
|
Safety STD |
Safety STD |
TUV EN60950-1,EN60335-1,EN61558-1/-2-16,CCC GB4943 |
||||
|
Withstand voltage |
||||||
|
Insulation resistance |
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC/25℃/70% RH |
|||||
|
EMI |
EN55022(CISPR22),GB9254(class B),EN55014,EN61000-3-2,-3 |
|||||
|
Other |
MTBF |
650K hrs,MIL-HDBK-217F(25℃) |
||||
|
Dimension |
190*63*38mm |
|||||
|
Package |
0.73KG |
|||||
|
|
100-240VAC: 15W 36W 60W 100W 150W |
|
100-240VAC: 15W 36W 60W 100W 150W |
